Vaillant F61 Fault Code on Boiler Causes & Fixes

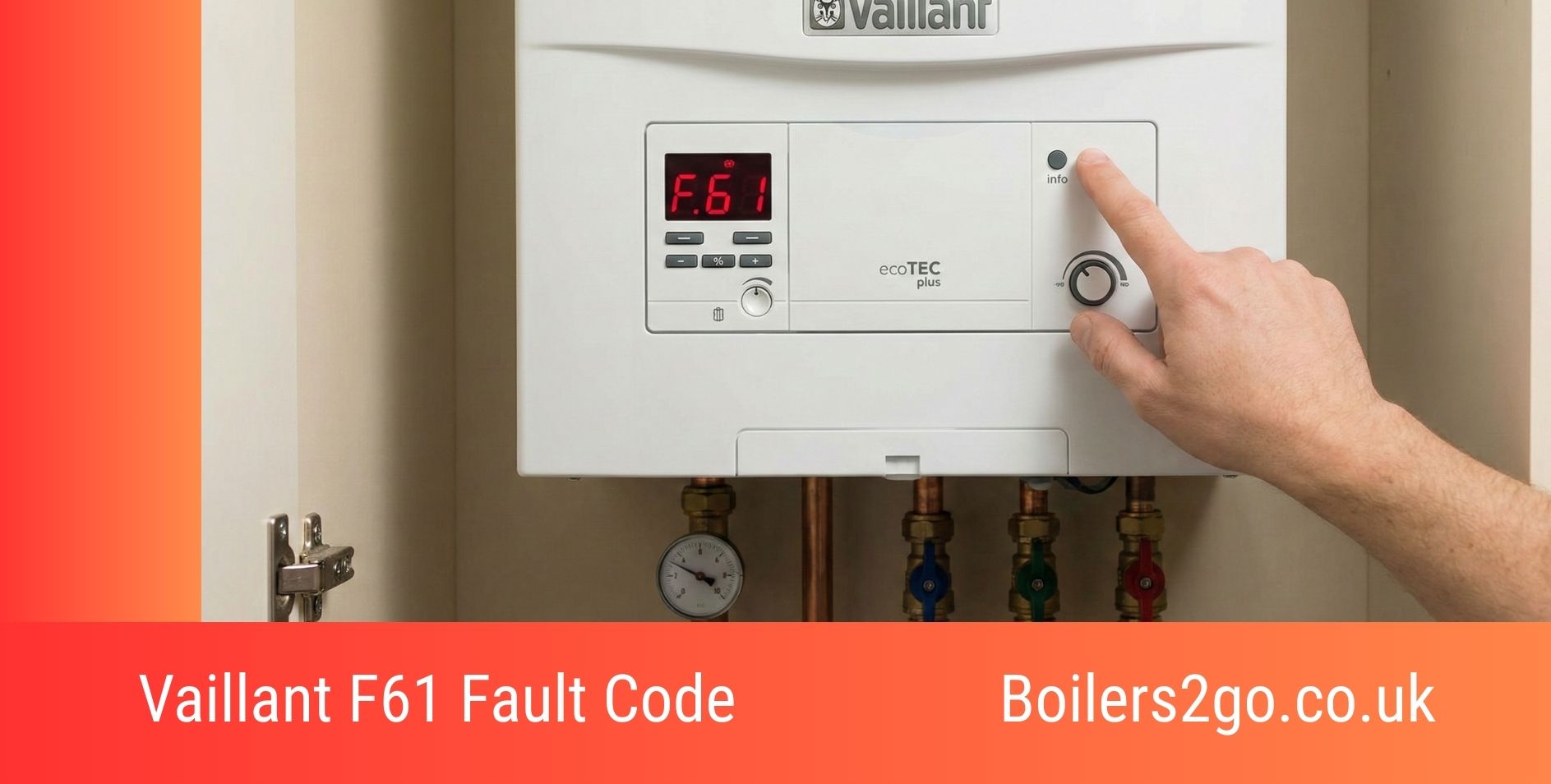

A Vaillant ecoTEC Pro, ecoTEC Plus, or ecoFIT Pure boiler showing F61 on the display, often with a permanent red light and no heating or hot water, has hit one of the scariest-sounding but actually quite well-understood faults on a Vaillant.

F61 means the gas valve control is defective. In plain English, the main printed circuit board has tried to open or close the gas valve but isn’t getting the correct electrical feedback signal back. The boiler therefore locks out completely for safety.

This fault is common across the UK on boilers from about 2012 onwards, especially in hard water areas such as London, the South East, and the Midlands.

The Real Causes of F61 in Everyday British Homes

In order of how frequently each one turns up:

1. The wiring harness or plug to the gas valve has worked loose or become corroded. The small multi-pin connector on top of the gas valve gets hot and cold cycled for years, and the pins turn green or the clip breaks.
2. Water damage to the main PCB. Tiny condensate leaks from the sump or trap drip onto the low-voltage side of the board and corrode the gas valve driver circuit.
3. The gas valve stepper motor or solenoid has failed. The valve itself sticks or the coils burn out, more common after 10 to 12 years.
4. The main PCB gas valve driver has blown. Usually triggered by a short circuit from water or a power surge.
5. Very occasionally, the actual gas valve is out of calibration. This is the least common cause, and most engineers replace the valve anyway if they are already inside the casing.

Important: F61 is not low gas pressure, that is F28 or F29, and it is not an ignition electrode fault, that is F27 or F62.

Safe DIY Checks (There Aren’t Many)

Because F61 is almost always inside the sealed combustion chamber or involves gas-carrying parts, the legal DIY options are extremely limited.

1. Reset the boiler by pressing and holding the spanner or reset button for 5 seconds. If F61 clears once and never comes back, that was a temporary glitch. If it returns within seconds, stop there.
2. Check the electricity supply. Make sure the switched spur has not tripped and the fuse is intact.

That is the full extent of what is safe to try. The case should not be opened, wires should not be disturbed, and the gas valve should never be tapped or forced.

When a Gas Safe Engineer Must Be Called (Which Is Nearly Every F61 Case)

Everything beyond the two checks above is strictly Gas Safe only:

• Removing the front case and combustion cover
• Testing the gas valve coils and stepper motor
• Checking and replacing the wiring harness
• Drying out or replacing the PCB
• Carrying out a full gas soundness and combustion test after any repair

Always check an engineer is registered at www.gassaferegister.co.uk before booking a visit.

Typical 2026 Fixed Repair Prices for Vaillant F61

• New gas valve wiring harness only: £130 to £190
• New gas valve complete, Honeywell or Sit: £320 to £460 fitted
• Main PCB replacement, the most common worst-case scenario: £420 to £620 fitted
• Full gas valve and PCB together, when both are suspect: £720 to £920
• Fixed-price “F61 repair”, which many Vaillant specialists now offer: £380 to £550

How to Prevent F61 Happening Again

• An annual service by a Vaillant Advance or accredited installer, who will check the harness and sump for early leaks
• Fitting a condensate neutraliser or a pro pump if the boiler is in a loft
• Installing a good magnetic filter and inhibitor, since sludge accelerates component failure
• Considering a surge-protected plug or whole-house surge protection in a lightning-prone area

If the boiler is 10 or more years old and hits F61, many engineers will advise replacement rather than an £800-plus repair bill.

Frequently Asked Questions About Vaillant F61

Will resetting get rid of F61?

Only temporarily, and only with some luck. It nearly always comes straight back, since the underlying cause is a hardware fault rather than a software glitch.

Is F61 covered by a Vaillant warranty?

Yes, if the boiler is still within its 5 to 10 year warranty period and has a full service history from a Vaillant-trained engineer. In such cases, repairs are usually covered without additional cost. Anyone dealing with a related fault should also look at the Vaillant boiler F75 error solutions, since regular maintenance that prevents F61 also helps guard against F75 and extends the boiler’s overall lifespan.

My boiler is only 6 years old. Why has F61 appeared already?

Usually condensate dripping onto the PCB or a loose wiring harness, both of which can occur regardless of the boiler’s age. This is still likely to be covered under warranty provided the boiler has been serviced every year.

F61 or F62: what’s the difference?

F61 is a gas valve feedback wiring or driver fault, while F62 is a gas valve closing fault. The repair approach for both is similar, since they both usually involve the gas valve or its wiring.

Should the boiler be repaired or replaced?

Under 10 years old with a good service history, repair is usually the sensible choice, typically £400 to £550. Over 12 years old, a new boiler often makes more financial sense than a repair bill approaching £800 or more on an ageing unit.

Can F61 cause any safety risk beyond the boiler simply not working?

The lockout itself is a safety feature rather than a hazard, since it stops the boiler operating with an unreliable gas valve signal. The main risk comes from attempting to bypass or force a reset repeatedly, or from tampering with the gas valve or wiring without training, both of which should be avoided entirely.

Does hard water make F61 more likely?

Indirectly, yes. Hard water accelerates sludge and scale build-up in the system, which can contribute to condensate issues and general component wear over time. While F61 itself is an electrical fault rather than a limescale issue, a well-maintained system in a hard water area is generally less likely to develop the underlying conditions that lead to it.
