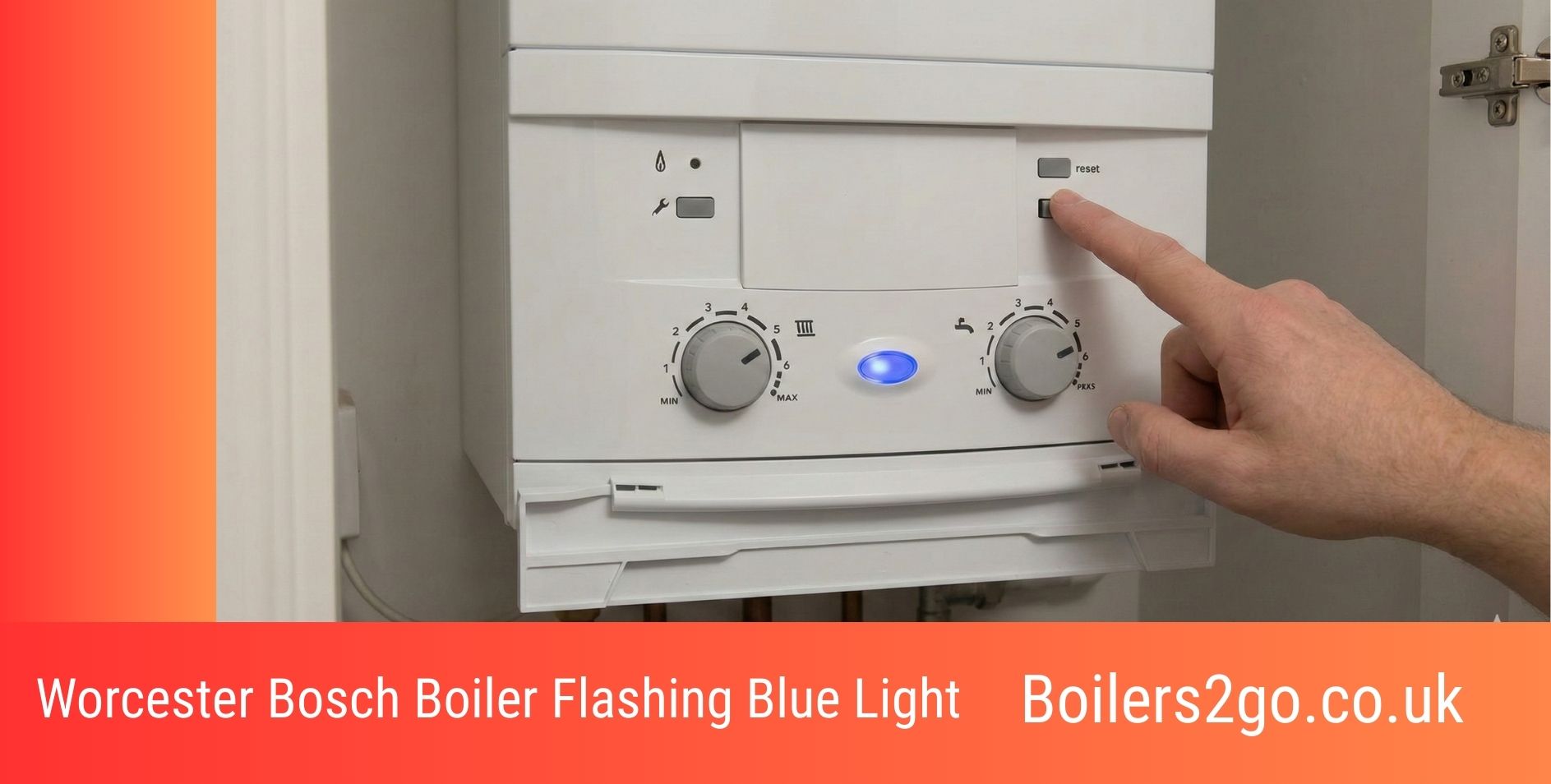

Worcester Bosch Boiler Flashing Blue Light: Causes & Fixes

A flashing blue light on a Worcester Bosch boiler means the unit has detected a fault and entered a safety lockout. It will not fire again until the fault is cleared and the boiler is reset. On most Greenstar models the blue light flashes alongside the reset button, and on digital display models an error code will appear at the same time to help identify what went wrong.

A steady blue light is normal: it means the boiler is running correctly. A fast, continuous flash with no error code usually means the boiler is in service mode rather than locked out on a fault. A slow flash, typically once every 2 to 3 seconds, is the fault lockout pattern.

Most blue light lockouts on Worcester Bosch boilers come down to a handful of well-understood causes. Several can be checked and cleared safely at home. Others require a Gas Safe registered engineer. This guide covers each cause, how to identify it, and what to do.

Watch Our Quick Video Guide Here:

Quick Diagnosis: Flash Pattern and Error Code

Use the table below to match what you are seeing on your boiler’s display before reading the detailed sections. For the full list of Worcester Bosch error codes and what each one means, the Worcester Bosch boiler error codes guide covers every code in detail.

Flash Pattern	Error Code	Most Likely Cause	DIY Fix?	Action
Slow flash (every 2-3 sec)	EA	Ignition failure: gas supply issue, frozen condensate, flue blockage, or faulty electrode	Partly	Check gas, condensate, flue terminal; reset once
Slow flash with no error code	None	Low water pressure (CE 207 may also appear on digital models)	Yes	Check pressure gauge; repressurise to 1.2 bar
Fast flash (continuous rapid)	None	Service mode: boiler recently serviced and left in service state, or switch accidentally activated	Yes	Reset boiler to exit service mode
Flash with D5 or EA	D5 or EA	Condensate pipe blockage (especially in cold weather)	Yes	Thaw external pipe with warm water; reset after
Flash with C6	C6	Fan fault: fan not running at correct speed or air pressure switch not confirming	No	Gas Safe engineer required
Flash without clearing after reset	Any	PCB fault, gas valve failure, or faulty flame sensor	No	Gas Safe engineer required; do not keep resetting

One reset only. If the fault code returns after a single reset, stop and call a Gas Safe engineer. Repeated resets on an active fault can mask the problem and cause further damage to the heat exchanger or ignition components.

1. Low Water Pressure

Low water pressure is the most common cause of a Worcester Bosch boiler locking out with a blue flashing light. When system pressure drops below approximately 0.5 bar, the boiler cannot safely circulate water and shuts down to protect itself. The pressure gauge on the front of the boiler is the first thing to check: it should read between 1.0 and 1.5 bar when the system is cold.

On digital Greenstar models, error code CE 207 or D5 will often appear alongside the blue light when the cause is low pressure. On older dial-based models such as the Greenstar Ri, the blue light may flash without an alphanumeric code.

Common causes of pressure loss include a slow leak in the pipework or radiator connections, pressure dropped after bleeding radiators without topping up, a weeping pressure relief valve discharging water to an outside drain, or a failing expansion vessel.

How to Fix It

1. Find the pressure gauge: it is on the front of the boiler, usually a circular dial or a number visible through the front panel. If it reads below 1.0 bar, the system needs topping up.
2. Locate the filling loop: on most Worcester Bosch combi and system boilers, this is a flexible braided hose beneath the unit with a valve at each end. Some models use a Worcester Keyless filling link.
3. Open both filling loop valves slowly and watch the gauge. Close both valves once the reading reaches 1.2 bar. Do not overfill: above 2.0 bar the pressure relief valve will open and discharge water outside.
4. Press and hold the reset button for approximately 3 to 5 seconds. On dial-based models without a button, turn the temperature knob anticlockwise to the reset position and hold for 5 seconds, then return to the original setting.
5. If pressure drops again within a few days, there is a leak in the system. Do not keep topping up: call a Gas Safe engineer to find and repair it.

2. Frozen or Blocked Condensate Pipe

Worcester Bosch Greenstar boilers are condensing units that produce acidic wastewater as part of their high-efficiency operation. This drains through the condensate pipe, usually a white plastic pipe that exits through an outside wall. In freezing conditions, the water in the external section of this pipe freezes solid and creates a blockage. Error code D5 or EA will typically show alongside the blue light when this is the cause.

This is one of the most common reasons for a blue light lockout during UK winter cold snaps, and it is one of the few causes that most homeowners can safely resolve themselves.

How to Fix It

1. Find the condensate pipe: it is a white plastic pipe (typically 22 mm or 32 mm diameter) leaving the boiler through an exterior wall.
2. Identify the frozen section, usually the bend or lowest point of the external run where water pools and freezes fastest. It will feel solid or show visible frost.
3. Pour warm water (not boiling) slowly along the frozen section using a jug. Work along the pipe until you can hear water flowing or gurgling inside. Do not use a naked flame or boiling water, which can crack the pipe.
4. Once thawed, reset the boiler using the reset button or dial procedure described above and allow it to complete its start-up sequence.
5. After the boiler is running again, fit foam pipe lagging over the external section to reduce the risk of refreezing. For pipes that freeze regularly, trace heating cable provides more reliable winter protection.

3. Gas Supply Interruption

If gas is not reaching the boiler at the correct pressure, the burner cannot ignite and the boiler locks out. Error code EA is the most frequently associated code for gas supply problems on Worcester Bosch boilers. The key distinction to make first is whether the problem is with the incoming gas supply to the property or with the boiler’s own gas valve and connections.

What You Can Check

1. Test another gas appliance: turn on the kitchen hob or a gas fire. If it also has no gas, the problem is with the supply to the property rather than the boiler.
2. Check the emergency control valve (ECV) at the gas meter: confirm the lever is aligned with the pipe (open position). A lever perpendicular to the pipe means it is closed.
3. If the meter is outside in freezing conditions: a frozen gas meter regulator can restrict flow. Pour warm water gently over the regulator and the external pipework. Do not use a flame.
4. If other appliances work and the ECV is open, attempt a single reset. If the boiler fires and then locks out again with EA, the boiler’s own gas valve or internal components need professional inspection.



Do not smell gas? Good. If you do smell gas at any point: do not operate any switches. Leave the property, open windows if it is safe to do so, and call the National Gas Emergency Service on 0800 111 999.

4. Blocked or Obstructed Flue Terminal

The flue carries combustion gases safely out of the boiler and the property. When the external flue terminal is blocked by birds’ nesting material, leaves, debris, or snow and ice in winter, backpressure builds inside the boiler. The safety sensors detect this and trigger a lockout. On most Worcester Bosch Greenstar models, error code EA will show with a blocked flue, though the boiler may also display a fan-related code such as C6 if the backpressure is affecting fan operation.

A flue blockage is a safety concern as well as a nuisance: in a worst case, blocked flue gases can include carbon monoxide. If your CO alarm has activated alongside the blue light, leave the property immediately and call 999.

What You Can Check

1. Locate the external flue terminal: usually a circular or rectangular grille on an outside wall, in the direction the boiler is mounted inside.
2. Inspect it visually from ground level. If there is clearly visible debris, leaves, a bird nest, or ice at the terminal, clear it carefully from ground level using a gloved hand or a soft brush. Never work at height to clear a flue.
3. Ensure nothing is within 300 mm of the terminal, including plant growth, garden furniture, or items moved by wind.
4. Reset the boiler. If the blue light clears and the boiler runs normally, the blockage was the cause.
5. If the blue light returns within a few minutes, or if you cannot see an obvious blockage, the issue may be an internal flue fault or a fan problem. Call a Gas Safe engineer.

5. Faulty Ignition Electrode or Flame Sensor

If the boiler attempts to fire (you can hear the fan start and then clicking from the spark generator) but the flame does not establish or is not detected, the boiler locks out with a blue flash and typically shows error code EA. The most common causes are a worn or corroded ignition electrode, a cracked ceramic insulator on the electrode, a dirty flame sensor (ionisation probe) that cannot read the ionisation current from the flame, or a loose connection on the ignition lead.

The diagnostic pattern to listen for: the fan runs for a pre-purge period, then repeated clicking starts as the spark generator fires, followed by lockout and the blue light flashing. If the boiler fires briefly and then cuts out after a second or two, that is more likely a dirty flame sensor than a failed electrode.

What You Can Safely Check

• Confirm the fan is running when the boiler demands heat. If the fan is silent, the fault is a fan or air pressure switch issue rather than ignition.
• If you are comfortable opening the boiler front panel: visually inspect the electrode for soot or carbon deposit on the tip. Gently clean with fine sandpaper if dirty. Check that the ignition lead is firmly seated at both the electrode and the PCB terminal.
• Attempt a single reset after cleaning. If the fault returns, the electrode, flame sensor, or ignition lead needs replacing by a Gas Safe engineer.



Do not attempt to adjust the electrode gap, replace gas components, or work on the PCB yourself. Electrode replacement on a Worcester Bosch Greenstar typically costs £150 to £250 including parts and labour.

6. Defective PCB

The PCB (printed circuit board) is the control board that reads signals from every sensor in the boiler and decides whether it is safe to proceed with ignition. A failing PCB can generate a blue light lockout in two ways: it may misread a sensor signal and trip a lockout when no real fault exists, or it may fail partially and stop controlling components correctly.

Water ingress from an internal boiler leak reaching the board, power surges, and age-related component fatigue are the most common causes of PCB failure on Worcester Bosch Greenstar models. A PCB fault is more likely when the blue light appears with no consistent error code pattern, or when every other possible cause has been checked and ruled out.

PCB diagnosis and replacement requires a Gas Safe engineer with diagnostic tools. Fitting a surge protector on the boiler’s electrical supply (typically the fused spur adjacent to the boiler) reduces the risk of surge-related PCB damage. PCB replacement on a Greenstar typically costs £300 to £500 including parts and labour in 2026. If the boiler is over 10 to 12 years old, it is worth getting a new boiler quote alongside the repair estimate before committing to this cost.

7. Fan Fault (Error Code C6)

The fan runs before every ignition attempt to clear the heat exchanger of any residual gases and to confirm the flue is clear. If the fan does not reach its required operating speed, the air pressure switch does not close, and the PCB prevents ignition to ensure combustion gases can safely exit the flue. The blue light flashes alongside error code C6 on Worcester Bosch models when this is the cause.

Common causes include a failing fan motor, a blocked air intake (the white plastic venturi tube is particularly susceptible to spider webs and debris in boiler cupboards), a split rubber hose between the fan and the air pressure switch, or a faulty air pressure switch itself.

Fan work is Gas Safe engineer territory. From ground level, it is worth checking that the external flue terminal is not obstructed (which creates backpressure that can mimic a fan fault) before booking an engineer. If the terminal is clear and C6 persists, a qualified engineer needs to access the fan assembly.

How to Reset a Worcester Bosch Boiler

The reset procedure differs slightly between Worcester Bosch models. Confirm which applies to your unit before attempting a reset.

• Greenstar Cdi, Si, and i series (digital display): press and hold the reset button (marked with a circular arrow or the word RESET) for 3 to 5 seconds. The display will briefly show ‘Reset’ and a tick if successful. The boiler will run through its start-up sequence: fan, pre-purge, spark, ignition.
• Greenstar Ri (dial-based, no digital display): turn the central heating temperature knob anticlockwise to the reset position. Hold it there for approximately 5 seconds, then turn back to your normal temperature setting. The blue light should stop flashing if the reset is successful.
• Greenstar 4000 and 8000 (touchscreen): tap the fault warning displayed on the screen to initiate the reset process.



After a successful reset, the blue light stops flashing and the boiler runs through its ignition sequence: you will hear the fan start, followed by clicking from the spark generator, and then the burner light. Total time from reset to confirmed operation is usually under 60 seconds.

If the fault code reappears immediately after reset, do not reset again. Call a Gas Safe engineer to diagnose the underlying fault.

How to Prevent the Blue Light Lockout

• Annual service by a Gas Safe engineer: the most effective prevention measure. A full service covers pressure checks, electrode inspection, combustion analysis, flue integrity, and condensate trap cleaning.
• Insulate the condensate pipe: fit foam pipe lagging on the external section before winter. This is a low-cost step that prevents one of the most common blue light call-outs between November and March.
• Monthly pressure checks: the gauge should hold between 1.0 and 1.5 bar. A gradual drop over weeks indicates a slow leak that needs finding before it causes a lockout.
• Keep the flue terminal clear: check at the start of each heating season for debris, nesting, or plant growth encroaching within 300 mm of the terminal.
• Fit a surge protector on the fused spur: power surges are a common cause of PCB damage. A simple surge protector available at any electrical merchant reduces this risk significantly.

When Should You Get a New Boiler Quote?

If your Worcester Bosch boiler is over 10 to 12 years old and the blue light lockout is becoming a recurring event, repair costs can start to add up relative to the value of the boiler. A modern A-rated condensing boiler is considerably more efficient than a unit from a decade ago, and the annual savings on gas bills can offset installation costs over time.

Boilers 2 Go provides free, no-obligation new boiler quotes with fast installation across the UK, often available the next day. If the repair quote comes in at or above half the cost of a replacement boiler, comparing both options side by side is worth doing before committing to parts.

FAQs

Does the blue light lockout mean my Worcester Bosch boiler is dangerous?

The lockout itself is a safety feature, not a danger indicator. The boiler has shut itself down precisely to prevent unsafe operation. The situation that triggered the lockout may or may not be a safety concern. A low pressure lockout is not dangerous in itself. A flue blockage or gas supply issue should be treated with more urgency. If your carbon monoxide alarm activates at the same time as the blue light, leave the property immediately and call 999.

How does UK weather affect how often the blue light appears?

Cold UK winters are the most common trigger for increased blue light lockouts. Condensate pipes freeze during extended cold snaps, gas meter regulators can restrict flow in sub-zero temperatures, and system pressure can drop as seals contract in the cold. Insulating external condensate pipe runs before November significantly reduces the risk of winter lockouts.

Can I use the Worcester Wave app to monitor the blue light remotely?

The Worcester Wave smart thermostat and EasyControl app can alert you when the boiler has stopped responding or when heating has failed to reach the set temperature, which is indirect evidence of a lockout. They do not display the specific error code directly in the app on all models. For full remote fault monitoring, the Worcester Bosch EasyControl with a WiFi-connected Greenstar 4000 or 8000 provides the most complete diagnostic information accessible via a smartphone.

Are there regional differences in what causes the blue light to appear?

Yes, to some extent. Homes in coastal areas with salt air and high humidity tend to see accelerated corrosion on ignition electrodes and PCB connections, making those faults more common. Hard water areas (the South East and East of England) see more heat exchanger blockages from limescale. Northern Scotland and elevated areas experience more condensate pipe freeze-ups than southern England. In all cases, annual servicing and targeted prevention (magnetic filter, pipe lagging, surge protection) address the most region-specific risks.

Does the blue light flash look different in service mode versus a fault?

Yes, and this is an important distinction. A fault lockout produces a slow, deliberate flash roughly every 2 to 3 seconds alongside the reset button flashing at the same rate. Service mode produces a continuous fast flash with no error code on the display. Service mode is sometimes left active after an engineer visit or accidentally triggered by the controls being knocked. To exit service mode, press the reset button once briefly, or follow the dial reset procedure for non-display models.
