A sudden boiler shutdown is an unwelcome event, especially during colder months. If your Worcester Bosch boiler displays the EA229 error code, it means the system has detected a problem and stopped working for safety reasons. This guide explains what the EA229 error means, its common causes, and what steps you can take to resolve it safely.

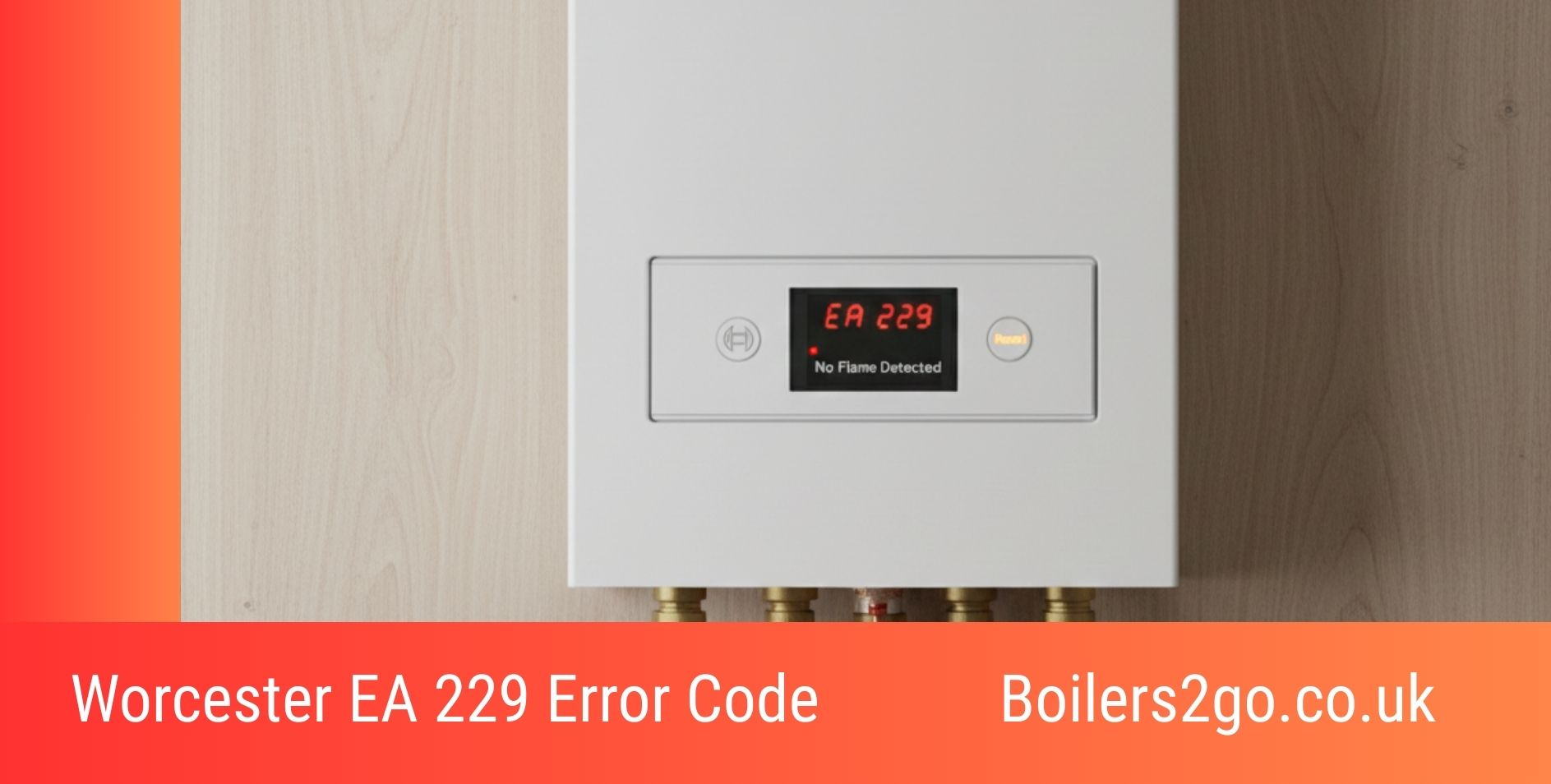

Understanding the Worcester Bosch EA229 Error
The EA229 error code specifically indicates a “loss of flame” or “fading flame” while your boiler is running. Unlike an ignition failure where the boiler fails to light in the first place, this error means a flame was successfully established but then went out unexpectedly.
Why Does the Boiler Lock Out?
When a loss of flame occurs, your boiler’s internal safety systems initiate a lockout. This is a protective measure to prevent unburnt gas from accumulating, which could be dangerous. The boiler will not operate again until the issue is addressed and the system is reset.
Common Causes of the EA229 Error Code
Several issues can cause the flame in your boiler to extinguish during operation. Some are minor and can be addressed without professional help, while others require a certified engineer.
1. Frozen Condensate Pipe
One of the most frequent causes of the EA229 error, especially during UK winters, is a frozen condensate pipe. The small plastic pipe, usually located outside, can freeze and block drainage. When this happens, the boiler will shut down to prevent damage.
2. Blocked Condensate System
Debris, sludge, or internal blockage in the condensate trap (sump) can prevent proper drainage, having the same effect as a frozen pipe and triggering a boiler lockout.
3. Faulty Gas Valve
The gas valve controls fuel delivery to the burner. If it’s stuck, faulty, or not opening correctly, the boiler may ignite but the flame will quickly die out, resulting in the EA229 code.
4. Incorrect Gas Pressure
Low mains gas pressure or issues with the meter regulator can result in an unstable or weak flame that cannot be maintained during boiler operation.
5. Flue or Burner Blockages
A blocked flue can disrupt combustion by affecting the air-to-gas ratio. Likewise, debris on the heat exchanger or a blocked burner jet can weaken the flame and cause intermittent operation.
6. Faulty PCB (Printed Circuit Board)
The PCB monitors the flame. If the flame detection circuit malfunctions or the PCB fails, the system might indicate a flame loss even if one is present, or fail to operate other critical components such as the gas valve.
Practical Steps for Homeowners
Before calling an engineer, try these safe checks and simple fixes yourself.
Step 1: Check the Condensate Pipe
Identifying and Thawing a Frozen Pipe
- Locate the Pipe: Find the plastic pipe (usually white or grey, approx. 22mm in diameter) running from your boiler to an outdoor drain.
- Check for Freezing: If the pipe is cold to touch or you see ice, it may be frozen.
- Defrost: Carefully pour warm (not boiling) water over the pipe. Listen for a gurgle as ice melts and blockage clears.
- Prevent Future Freezing: Once clear, insulate the pipe using foam lagging from a DIY store.
Step 2: Reset Your Boiler
When and How to Reset
After thawing the condensate pipe or if freezing is not suspected, press and hold the reset button for a few seconds. If the error was temporary, your boiler may restart. If the code reappears, avoid repeated resets as this suggests an underlying issue.
Step 3: Visually Inspect the Flue
Checking for Blockages
Safely examine the external flue for obvious obstructions such as leaves, debris, or nests. Do not use a ladder or climb to reach it yourself; if you spot a blockage you can’t safely clear, contact a professional.
When to Call a Gas Safe Engineer
The EA229 error should never be ignored. While simple resets may offer a short-term fix, recurring faults indicate deeper problems.
Situations Where Professional Help is Needed
- The error persists after clearing blockages or thawing and resetting.
- You suspect internal blockages in the condensate system.
- You’re uncomfortable attempting DIY checks.
- The issue occurs in mild weather, ruling out pipe freezing.
Legal and Safety Considerations
Only a Gas Safe registered engineer can legally and safely diagnose and repair faults involving gas-carrying components. This includes the gas valve, burner, and internal electronics. Attempting such repairs yourself is dangerous and prohibited.
Extended Troubleshooting and Prevention
Understanding Boiler Safety and Avoiding Further Damage
Repeated resets or ignoring the error code increases the risk of further damage to your boiler. Persistent faults can strain the gas valve, PCB, and burner assembly. Early warning signs like inconsistent heating, frequent resets, or unusual noises should be addressed promptly.
Insulation and External Maintenance
Properly insulate the external condensate pipe, especially in winter, to reduce the risk of freezing. Inspect for foam lagging and secure any exposed sections. Keep the external flue area clear, and consider flue guards if wind gusts are causing repeated EA229 issues.
DIY Tools and Time Estimates
To thaw a frozen pipe, you’ll need warm water and a towel. Avoid boiling water, hairdryers, or open flames to prevent pipe damage. Most thawing takes about 10–15 minutes but may require several tries for severe issues.
Correct Use of the Reset Button
The reset button restarts your Worcester Bosch boiler and may clear the fault code, but will not fix underlying issues. Do not operate the boiler with an active EA229 error while awaiting repair.
Proactive Measures to Prevent EA229 Errors
Routine Cleaning and Monitoring
Regularly clean around the boiler flue and condensate outlet. Monitor for changes in heating performance or any dips in efficiency to prolong equipment life and reduce breakdowns.
Recognising Early Warning Signs
Signs such as irregular heating, frequent error resets, or odd operational noises can indicate emerging faults. These should be investigated quickly to avoid major breakdowns.
The Importance of Annual Servicing
Regular maintenance is the best way to ensure your boiler runs safely and efficiently. An annual service from a Gas Safe engineer can identify and resolve potential issues before they lead to a breakdown.
What an Annual Service Covers
During a service, the engineer cleans major components such as the burner and condensate trap, checks gas pressure, and tests all safety devices. This proactive approach reduces the risk of errors like EA229 and helps maintain reliable heating throughout the year.
By following these guidelines and recognising when professional intervention is required, you can tackle the EA229 error code efficiently, protect your home’s heating system, and ensure safe and effective boiler operation.
