How to Reset an Ideal Logic Combi Boiler: Step By Step

If your Ideal Logic combi boiler has stopped working or is showing a fault on the display, a reset is often the first fix to try. These gas condensing units are popular across UK homes for their compact design and reliable on-demand hot water, but like any boiler they can trip into lockout mode when something goes wrong.

The good news is that resetting one is straightforward once you know where to look. This guide walks you through the process in plain terms, covering the reset button location, the steps to follow safely, and when a reset alone is not enough to fix the problem.

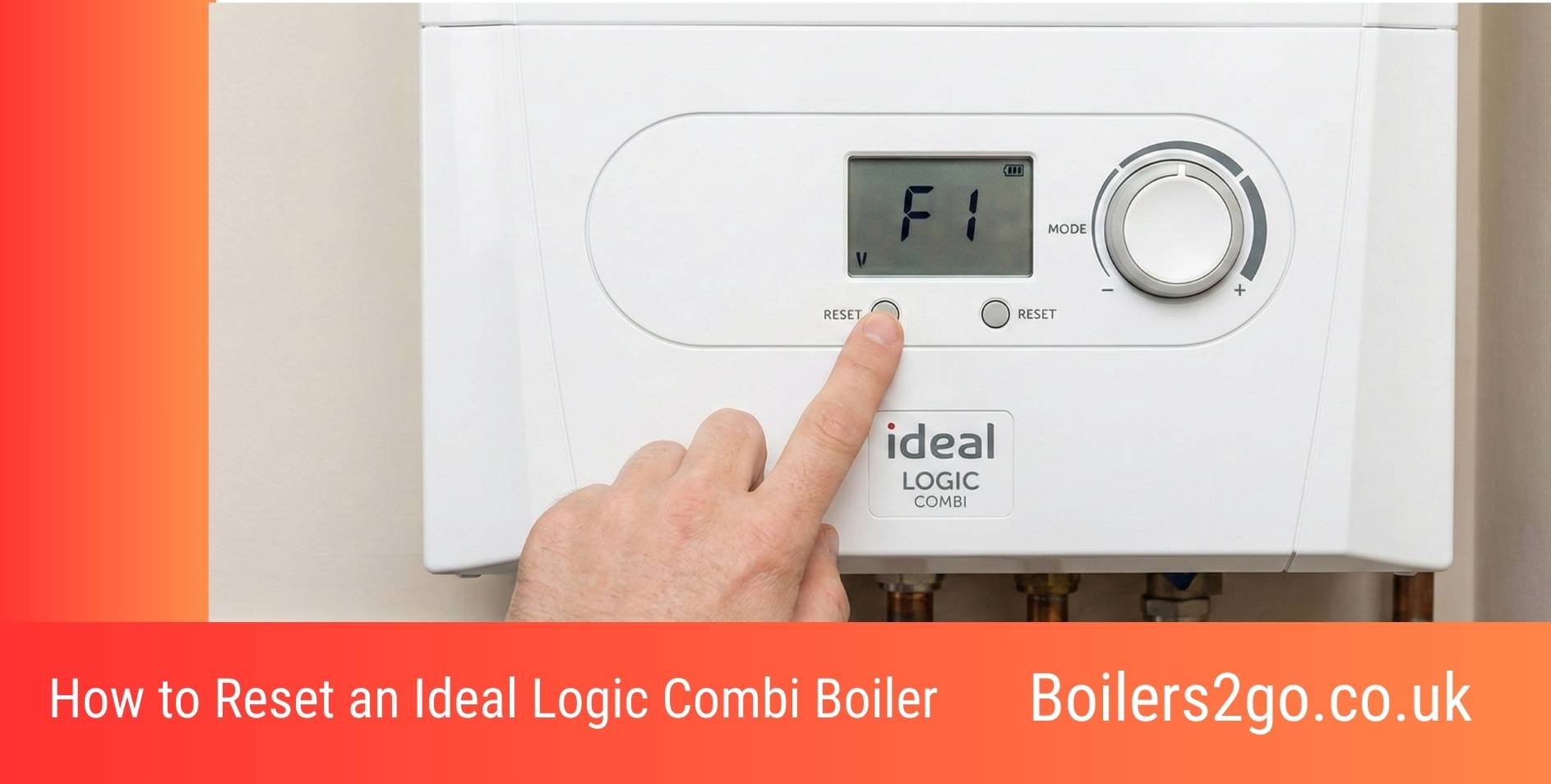

Where to Find the Reset Function on Your Ideal Logic Combi Boiler

The reset function on an Ideal Logic combi boiler sits on the front control panel. Depending on your model, it is either a dedicated push button below the digital display or built into the mode selector knob on the right-hand side of the unit.

On models such as the Logic Combi 30, the reset is often marked with an ‘R’ or a flame symbol. Older Ideal Logic versions typically use a knob twist method where you turn the dial to the right and hold it, while newer models have a push-and-hold button. If you are unsure, check the label printed on the inside of the front cover or refer to your user manual.

Landlords managing several properties should take note that the reset location can differ between the original Logic, Logic+ and Logic Max ranges, so it is worth confirming the specific model before starting.

View Our Quick Video Guide Here:

Before You Reset: Check These First

A reset clears the lockout so the boiler can attempt to start again, but it does not fix an underlying fault. Before pressing anything, it is worth doing a couple of quick checks that could save you a wasted attempt.

• Check your gas supply: Try a gas hob or another gas appliance to confirm supply is live. If nothing else is getting gas, the problem is with the supply, not the boiler.
• Check the pressure gauge: The pressure should read between 1.0 and 1.5 bar when the system is cold. Below 1.0 bar, the boiler will not restart properly. You will need to repressurise before resetting.
• Check the display: Note any fault code showing on the screen. Common codes include F1 (low pressure), L2 (ignition lockout) and F2 (flame loss). You can look these up using the ideal boiler error code explanations guide for a diagnosis before you reset.
• Smell of gas: If you smell gas at any point, do not attempt a reset. Turn off the gas supply and contact the National Gas Emergency Service on 0800 111 999 immediately.



How to Reset Your Ideal Logic Combi Boiler: Step By Step

Once you have done your checks and the situation is safe to proceed, follow these steps to reset your Ideal Logic combi boiler.

1. Ensure Safety First: Make sure the area around the boiler is clear and dry, and there is no smell of gas. If there is, stop and call a Gas Safe registered engineer straight away.
2. Locate the Controls: Open the front panel if needed and find the mode selector knob or reset button on the display panel. On most Logic models, the reset dial is on the right side of the unit.
3. Initiate the Reset: If your model has a dedicated reset button below the screen, press and hold it for around 3 to 5 seconds until the display changes. For knob-based models, turn the dial firmly to the right, hold it for a few seconds, then release and turn back to your preferred setting (winter or summer mode).
4. Wait for Ignition: Allow up to a minute for the boiler to complete its self-check and attempt to reignite. You should hear the fan spin up, followed by a click as the burner tries to light.
5. Verify Operation: Check the display for a normal status reading. Test your radiators and hot taps to confirm that heat and hot water have been restored.



A single reset should be enough for a temporary glitch. If the boiler locks out again within a short period, repeating the reset without investigating the root cause can cause further damage. At that point, it is best to call a Gas Safe registered engineer to diagnose the issue properly.

For more on your boiler’s behaviour and what the display is telling you, the ideal boiler status explained guide covers the key status codes in detail.

Common Reasons Your Ideal Logic Boiler Goes Into Lockout

Understanding why your boiler tripped in the first place helps you avoid repeat lockouts. Here are the most frequent causes engineers see.

Low System Pressure

This is the most common cause. Bleeding radiators releases trapped air and drops the pressure. Minor leaks do the same over time. Check the gauge and top up using the filling loop if it reads below 1.0 bar.

Ignition Failure (L2 Fault)

If the boiler attempts to light three times and fails, it locks out and shows L2 on the display. This can be down to a gas supply interruption, a faulty spark generator, or a blocked condensate trap. A one-off reset often clears an intermittent ignition fault, but if L2 keeps returning the ignition module may need replacing.

Frozen Condensate Pipe

During colder UK winters, the condensate pipe that runs outside can freeze and cause a blockout. Thawing the pipe with warm (not boiling) water usually gets the boiler going again. Insulating exposed pipe runs before winter sets in reduces the risk considerably. Our ideal logic combi boiler review covers further features and tips relevant to keeping the system running well.

Overheating (L9 or HA Fault)

If the boiler is running too hot, it will shut down to protect itself. This is usually caused by a faulty thermistor, a blocked heat exchanger, or a pump that has seized. A reset alone will not fix this one and a Gas Safe engineer should inspect the unit before it is started up again.

When to Call a Gas Safe Engineer

Some faults are safe to clear yourself with a reset. Others signal that something inside the boiler needs professional attention. Call a Gas Safe registered engineer if:

• The boiler locks out again shortly after being reset
• Fault codes persist on the display after resetting
• You have had to reset the boiler more than twice in a short period
• You smell gas at any point
• The boiler makes banging, gurgling, or rattling noises that were not there before

Repeated resets without a fix can cause further damage and, in some cases, create unsafe conditions. It is always better to get the underlying fault sorted than to keep clearing the lockout and hoping for the best.

Ready to Upgrade? Get a New Boiler Quote from Boilers 2 Go

If your Ideal Logic is tripping into lockout more and more frequently, it may be time to consider a replacement rather than chasing recurring repairs. A modern condensing boiler is considerably more energy efficient than units from ten years ago, which can make a real difference to your energy bills over time.

Just share details about your current setup or property needs and we will provide a competitive quote for a new installation. Get your free boiler quote here.

FAQs

How does resetting my Ideal Logic combi boiler affect its energy efficiency?

Resetting your Ideal Logic combi boiler does not directly impact its long-term energy efficiency. That said, frequent resets often point to an underlying fault that is already affecting performance. Addressing the root cause keeps the system running at its best. For more on what your boiler’s display is telling you, the ideal boiler status explained guide is a useful reference.

Can I schedule automatic resets for my Ideal Logic boiler using smart controls?

Ideal Logic boilers do not have a built-in auto-reset function. Integrating a smart thermostat such as Hive or Nest can help by alerting you to faults early, so you can respond before a full lockout occurs, but the reset itself still needs to be done manually at the boiler.

What role does water pressure play in successful Ideal Logic boiler resets?

Pressure between 1.0 and 1.5 bar is needed for a reset to work properly. If the system is below 1.0 bar, the boiler will not restart. Top up via the filling loop first, then attempt the reset. Low pressure is common in hard water areas and after radiators have been bled.

Are there any tools recommended for accessing the reset on an Ideal Logic combi boiler?

A small torch is handy if the boiler is in a dark cupboard. Beyond that, no specialist tools are needed. The reset button or knob is accessible from the front of the unit without opening any sealed panels.

How can seasonal changes in the UK influence the need for Ideal Logic boiler resets?

Cold UK winters put more strain on the system, and the condensate pipe is particularly vulnerable to freezing during prolonged cold snaps. Insulating any external pipe runs before temperatures drop helps reduce lockouts. Boilers that have not been serviced before winter are also more likely to develop faults when demand increases.

How many times can I reset my Ideal Logic boiler before calling an engineer?

As a general rule, if the boiler does not stay running after one or two resets, it needs professional attention. Resetting repeatedly without resolving the fault can cause damage to components such as the spark generator or gas valve, and in some cases creates safety risks.
