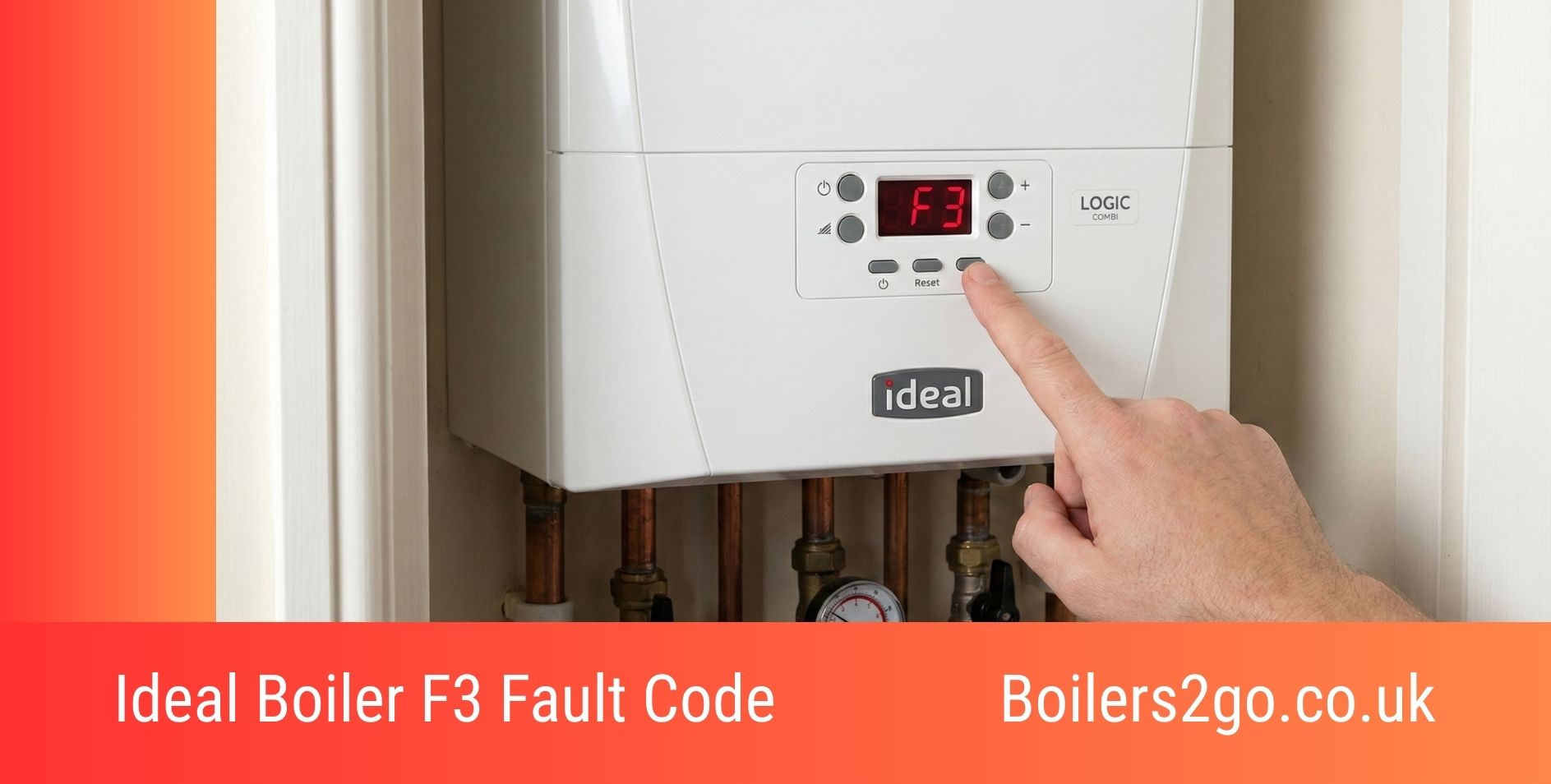

Ideal Boiler F3 Fault Code: Causes & Fixes

The Ideal boiler F3 fault code means the printed circuit board (PCB) cannot detect that the fan is running at the correct speed, or sometimes running at all.

The fan’s job is to pull fresh air into the burner, push harmful flue gases safely outside, and create the right pressure inside the combustion chamber. If the PCB doesn’t receive the expected feedback signal from the fan within a set time, it locks out the boiler and displays the F3 error for safety.

This guide covers the most likely causes and provides step-by-step fixes that can safely be tried at home, plus when it’s time to call a professional Gas Safe engineer.

What Causes the Ideal Boiler F3 Fault Code?

Several issues can trigger the F3 fault on Ideal boilers. Below are the most common causes seen in the UK, along with proven fixes. Understanding common fault codes on other brands, such as intergas boiler error code solutions, can also be useful for anyone troubleshooting a mixed portfolio of boilers, since keeping a record of any error codes helps ensure proper diagnosis.

If the boiler shows no display at all rather than a fault code, boiler power loss solutions covers electrical supply issues rather than fan or ignition faults.

1. Blocked or Restricted Flue / Air Intake

A blocked flue terminal outside, such as bird nests, leaves, snow, or wasp nests, or a restricted air intake pipe, is one of the top reasons for an F3 fault.

How to Fix It Yourself (Safe Checks Only)

• Go outside and carefully check the flue terminal, usually a white or grey pipe on an external wall.
• Clear away any leaves, snow, cobwebs, or debris around the terminal guard.
• Make sure the terminal is not iced over in winter. Gently melt ice with warm, not boiling, water if needed.
• Reset the boiler once cleared.

If the flue runs horizontally more than 1 to 2 metres or vertically through a roof, don’t attempt to clear it. Call a Gas Safe engineer instead.

2. Faulty Fan Assembly

Over time, usually after 8 to 12 years, the fan bearings wear out, the fan motor fails, or the internal venturi becomes clogged with dust and debris.

How to Fix It

This is not a DIY repair. A Gas Safe engineer will:

• Remove and test the fan.
• Clean the venturi if possible.
• Replace the fan assembly if needed, using a genuine Ideal part, typically around £180 to £280 fitted.

3. Broken or Loose Fan Wiring / Connector

The small multi-pin plug on top of the fan can work loose due to vibration, or the wiring can become damaged.

How to Fix It (Basic Check Only)

If confident and the boiler is isolated from the mains electricity, opening the boiler case to check the fan plug is firmly pushed in is a reasonable basic check. Live wires should never be touched, and repairs should never be attempted while power is on.

Most homeowners prefer to let an engineer reseat or replace the harness. It takes around 10 minutes for a professional.

4. Faulty Printed Circuit Board (PCB)

The PCB is the brain of the boiler. If the fan speed feedback circuit on the PCB fails, it will incorrectly show an F3 even when the fan is working perfectly.

How to Fix It

PCB diagnosis and replacement must be carried out by a Gas Safe registered engineer. A new main PCB for an Ideal Logic typically costs £220 to £350 fitted at current 2026 prices.

5. Condensate Trap or Pipe Blocked (Less Common)

In rare cases on older Ideal models, a severely blocked condensate trap can cause back-pressure that affects fan operation.

How to Fix It

• Check the condensate pipe outside isn’t frozen or blocked.
• Pour warm water down the pipe, or use a condensate pipe insulation sleeve if freezing is the issue.

If the trap inside the boiler is clogged, an engineer will need to clean or replace it.

How to Reset an Ideal Boiler Showing F3 Fault

After clearing an obvious external blockage:

1. Press and hold the reset button for 2 to 5 seconds. Location varies by model, usually marked with an “R” or flame symbol.
2. The boiler will attempt to start. If the fan runs normally and the fault clears, the boiler should return to normal operation.
3. If F3 returns immediately or within a few minutes, stop resetting and book an engineer.

How to Prevent the Ideal F3 Fault Code in the Future

• Book an annual boiler service with a Gas Safe engineer, who will clean the fan and check flue integrity.
• Keep the external flue terminal clear of plants, leaves, and snow.
• Fit a flue guard if birds or wasps are common in the area.
• Consider a magnetic system filter, such as a MagnaClean or Adey, to reduce internal debris that can clog the fan venturi over time.
• Insulate the condensate pipe in winter to avoid pressure-related issues.

When an Engineer Absolutely Must Be Called

A qualified Gas Safe registered engineer must be called immediately if:

• The F3 fault returns after resetting twice.
• The fan can be heard not spinning at all, or is making unusual grinding noises.
• There is any smell of gas.
• The flue is internal, vertical, or difficult to access.

The boiler is still under warranty. Ideal’s warranties typically range from 2 to 12 years depending on the model, as set out in Ideal Heating’s own warranty guide, and DIY attempts can void that cover.

Trying to repair the fan, PCB, or gas-carrying components without Gas Safe registration is illegal in the UK and extremely dangerous.

FAQs

Will an Ideal Boiler Still Provide Hot Water With an F3 Fault?

Most Ideal Logic and Vogue models lock out both heating and hot water when F3 appears, because the fan is required for safe operation in both modes.

How Long Do Ideal Boiler Fans Typically Last?

On average, 10 to 15 years with annual servicing. Heavily used boilers in hard-water areas may need a new fan sooner.

Is the F3 Fault Covered Under Ideal’s Warranty?

Yes, if the boiler is still within its parts-and-labour warranty and has been serviced every year by a Gas Safe engineer, the repair including parts and labour is usually free. Understanding the moving boiler costs breakdown is also worth reviewing separately if repositioning the boiler is being considered alongside any repair work, since installation, maintenance and efficiency all factor into that kind of decision.

Can a Power Surge Cause an F3 Fault on Ideal Boilers?

Rarely. Power surges more commonly damage the PCB and show L2 or F2 faults. F3 is almost always mechanical, relating to the fan or flue.

Does an Ideal Boiler F3 Fault Always Involve a Pressure Switch?

No. Ideal boilers do not use a separate air pressure switch on Logic or Vogue models; the fan has an integrated Hall-effect sensor instead. Repairs are almost always fan or PCB related rather than a simple, low-cost pressure switch swap.
